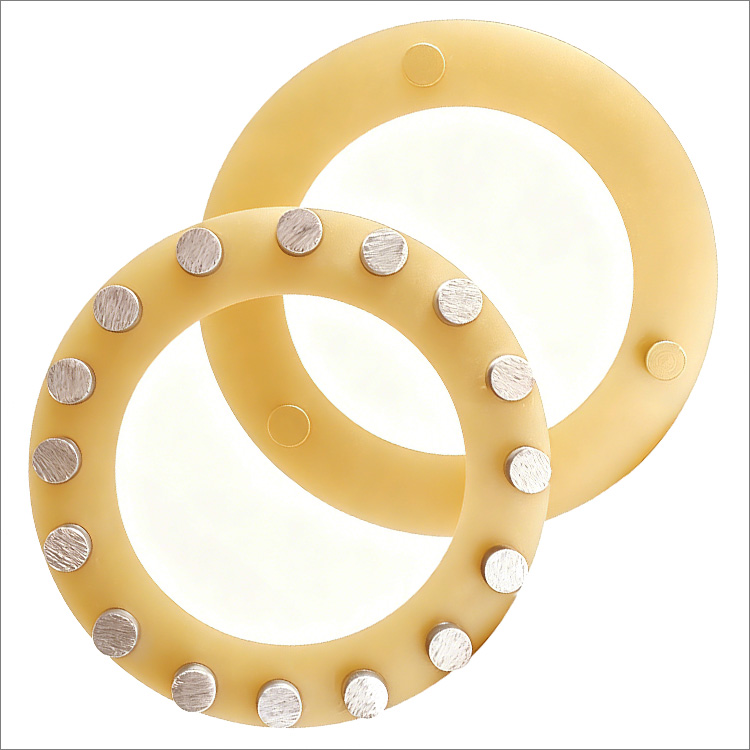

Diamond
disc concrete grinding plate for Klindex floor grinders -
cylindrical segments
This 200mm or 240mm diamond
grinding plate with cylindrical segments design fits to most of the single double three
heads Klindex floor grinders in the market. It is used
for removing hard epoxies and coatings, erasing concrete
imperfections, leveling uneven spots or joints and smoothing rough
or patched concrete terrazzo stone floor surfaces.
It can be used dry,
but will give better performance and life used wet.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen. Diamond grit No.:
#6, #16, #20, #25, #30, #40,
#50, #60, #80,
#100, #120, #150,
#170,#200.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
For Klindex floor grinders.
Diameter: 200mm, 240mm.
Segment size & No.: 20x12mm*12/16pcs.
Segment bond: soft,
medium, hard.
Diamond grit: #6 - #200.
With 3 back plugs.
Dry or wet use.
|
Code No. |
Diameter |
Segment Size/No. |
|
DGD-Klindex-01-200 |
200mm |
20x12mm*12pcs |
|
DGS-Klindex-01-240 |
240mm |
20x12mm*16pcs |
The above specifications & photos are for reference, other specification
may be available as per demand.
