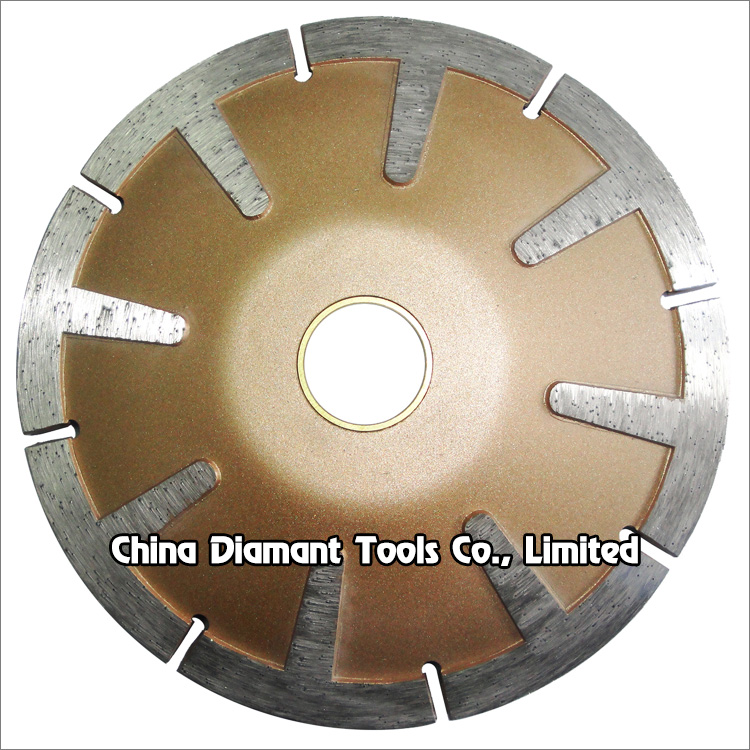

Concave Diamond Saw Blades T Segmented Cutting Granite Stone

Diamond concave saw blades T shape segmented can be used in radius cutting, diameter from 4"(105mm) - 7"(180mm) for dry cutting circles or curved line on the slab, countertops, etc. The protection on the both in- and-out side provide faster cutting on various stone or granite, fast cutting and good life time.

1. Producing tech.: Hot sintered;

2. Outer diameter: 105mm, 115mm, 125mm, 150mm, 180mm;
3. Segment Height: 8mm;
4. Bore Size: 16mm, 20mm or 22.23mm;
5. Application: Nature stone like granite, marble. Engineered stone, quartz, etc;
6. Dry or wet use.

Code No.	Diameter	Segment Type	Segment No.
CSB-01-105	105mm(4")	T Shape	8
CSB-01-115	115mm(4.5")		9
CSB-01-125	125mm(5")		9/10
CSB-01-150	150mm(6")		12
CSB-01-180	180mm(7")		14

Our concave blade is a good choice for your cutting sinkholes or other inside arcs. The blades use soft bond for fast aggressive cuts on various stones including hard granite. They can be run on most electric grinders and will cut through either 2cm or 3cm stone. They have core protection on the inside and the outside of the blade to help reduce heat build up and to prevent binding. They will also give you a smoother finish.

The above specifications & photos are for reference, other specification may be available as per demand.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
