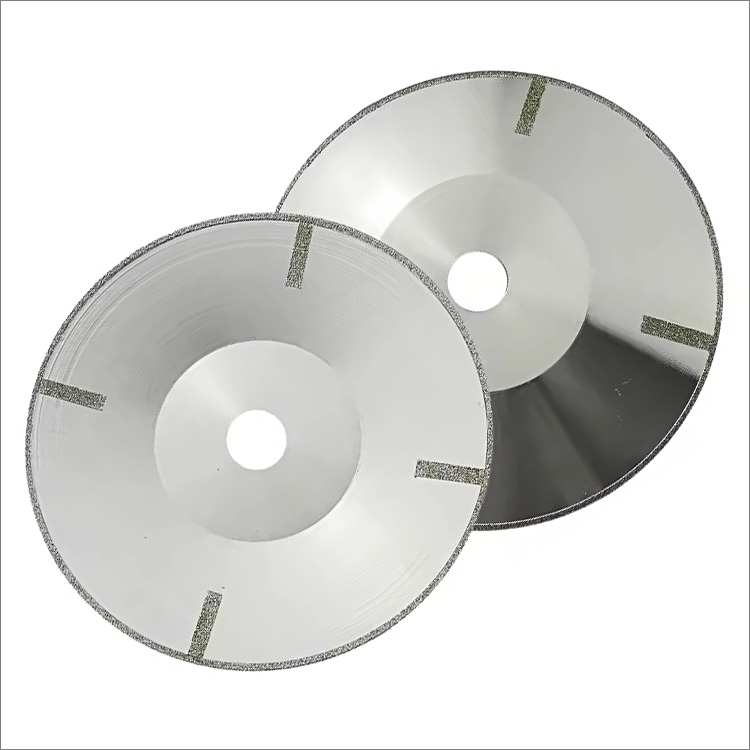

Concave continuous
rim reinforced electroplated
diamond saw blade for soft
stone marble quartz porcelain

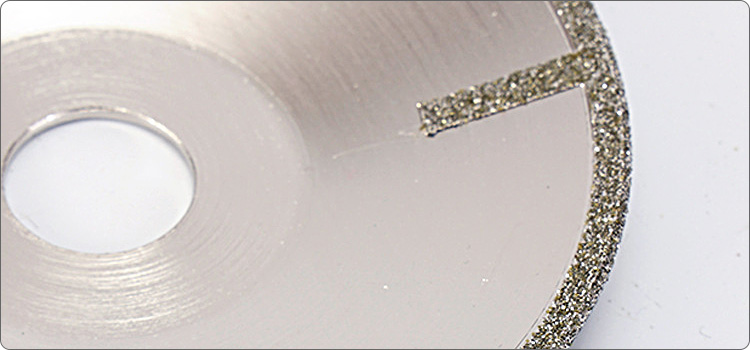

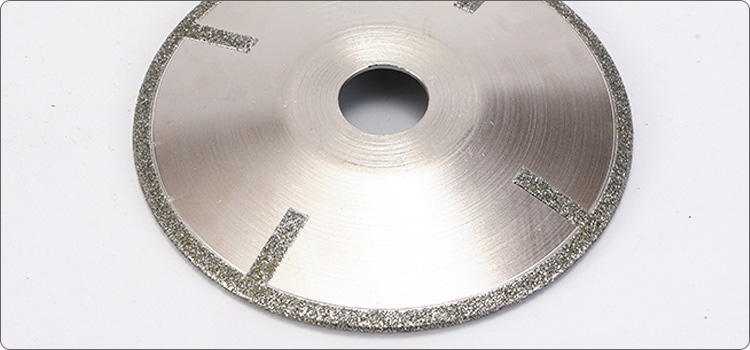

These concave continuous rim reinforced electroplated diamond saw blades
curved diamond discs are used on angle
grinders for sharp and smooth cutting circles or curved line on a wide
range of materials such as soft
stone, marble, quartz, ceramic, porcelain tiles. The protection on
the both in- and-out side provide fast cutting and good life time.
Electroplated technology keeps all diamond grain attached to the
edge and sides of steel core with high density, strong diamond coating and high diamond exposure rate provide
smooth & accurate cutting with high
efficient working performance.
Wet or dry use, wet working may prolong
the working life.
Diamond grit: #40/45, other diamond grit from #50 to #150 is possible available. Diamond working width:
5-10mm.
Bore size: 22.23mm.
|
Code No. |
Diameter |
Diamond grit |
|
CSB-EL01-100 |
100mm(4") |
#40/45 |
|
CSB-EL01-115 |
115mm(4.5") |
#40/45 |
|
CSB-EL01-125 |
125mm(5") |
#40/45 |
|
CSB-EL01-150 |
150mm(6") |
#40/45 |
|
CSB-EL01-180 |
180mm(7") |
#40/45 |
|
CSB-EL01-200 |
200mm(8") |
#40/45 |
|
CSB-EL01-230 |
230mm(9") |
#40/45 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
