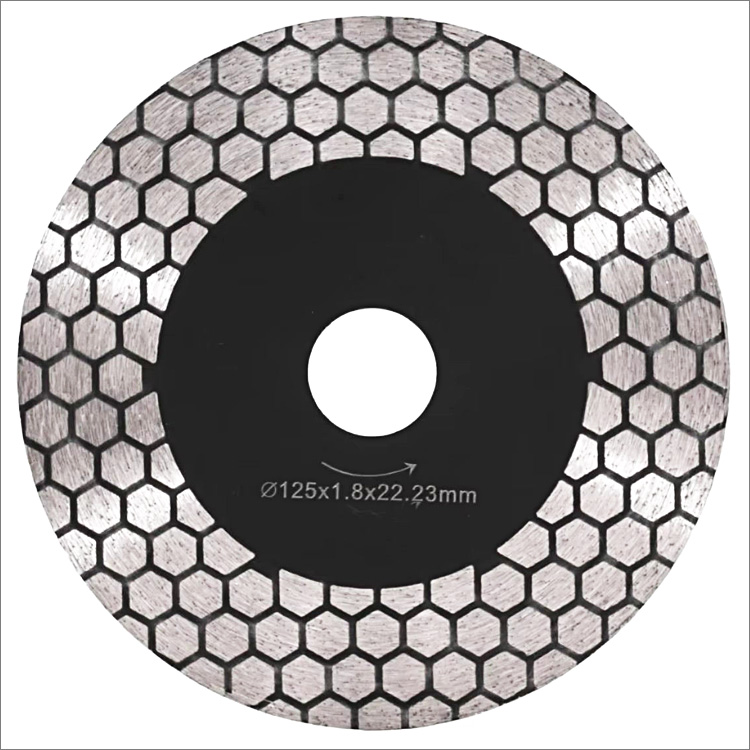

Diamond cutting
grinding disc for
ceramic porcelain tile marble - continuous & hexagons segments
4.5 5 inches 115mm
125mm ultra-thin diamond saw blades
with double sides continuous & hexagons segments for cutting grinding ceramic,
porcelain, tile, masonry, marble, and soft stone, fast smooth
and precise cutting, less dust, less vibration, and higher work
efficiency.
Diameter:
4.5", 5".
Segment height: 25mm.
Bore size:
20mm, 22.23mm, M14 or 5/8"-11 with flange.
Hot-press sintered.
Wet or dry use.
Used with angle
grinders or tile saws.
Recommended speed:
8000RPM
Maximum speed: 13200RPM
|
Code No. |
Diameter |
Segment size
(W*H)mm |
|
SBCP-07-115 |
115mm(4.5") |
1.8*25mm |
|
SBCP-07-125 |
125mm(5") |
1.8*25mm |
The above specifications & photos are for reference, other specification
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
