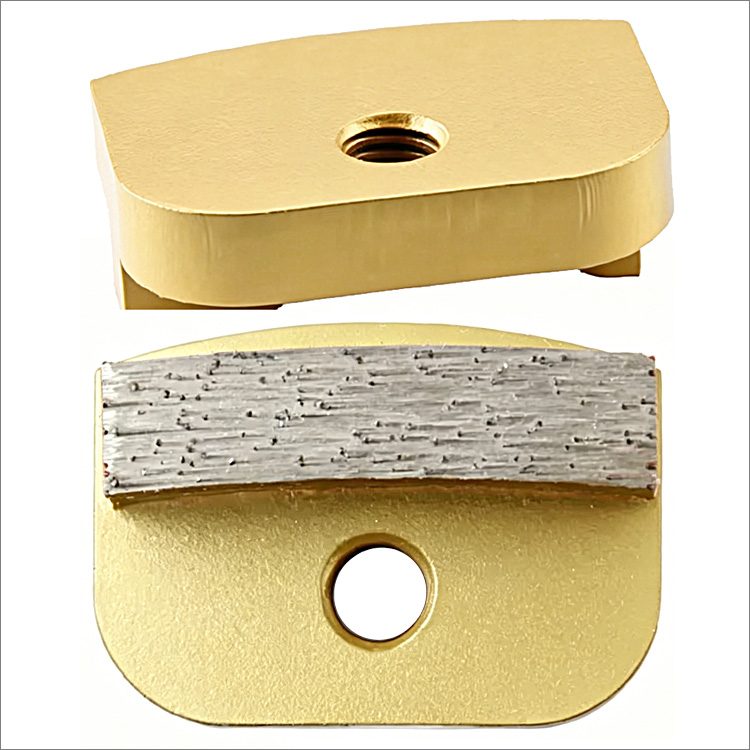

Diamond
grinding shoes for Newgrind Rhino floor grinders - curved bar shape segments
The diamond grinding
shoe with 1pc curved bar shape segments is one of the floor
preparation tools used on Newgrind Rhino floor grinders for
floor rough leveling and grinding or quick removing
various coatings such as paint, varnish, glue, epoxy, acrylic,
screed residue, VCT mastic, black tar adhesive as well as thick
rubber materials on concrete or terrazzo floor surface.
Metal bond diamonds have
high strength, excellent wear resistance, and a low friction
coefficient. It's easy to deal with various rough surface, smooth
and unbroken edges, low grinding resistance and high efficiency, and
it is aggressive leaving and deep to medium scratch pattern, take
the floor from coarsely structured surface to pre-polishing.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen.
Regular diamond grit No.:
#6, #16, #20, #25, #30,
#40,
#50, #60,
#80,
#100, #120,
#150,
#170,
#200.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
For Newgrind Rhino floor grinders.
Segment size & No.: 40x10x10mm*1pc.
Segment bond: soft,
medium, hard.
Diamond grit: #6 - #200.
Dry or wet use.
|
Code No. |
Segment Size/No. |
Grit No. |
|
DGS-Newgrind-03 |
40x10x10mm*1pc |
#6 - #200 |
The above specifications & photos are for reference, other specification
may be available as per demand.
