Diamond grinding shoes
concrete grinding
pads for Lavina floor grinders - mountain shape segments

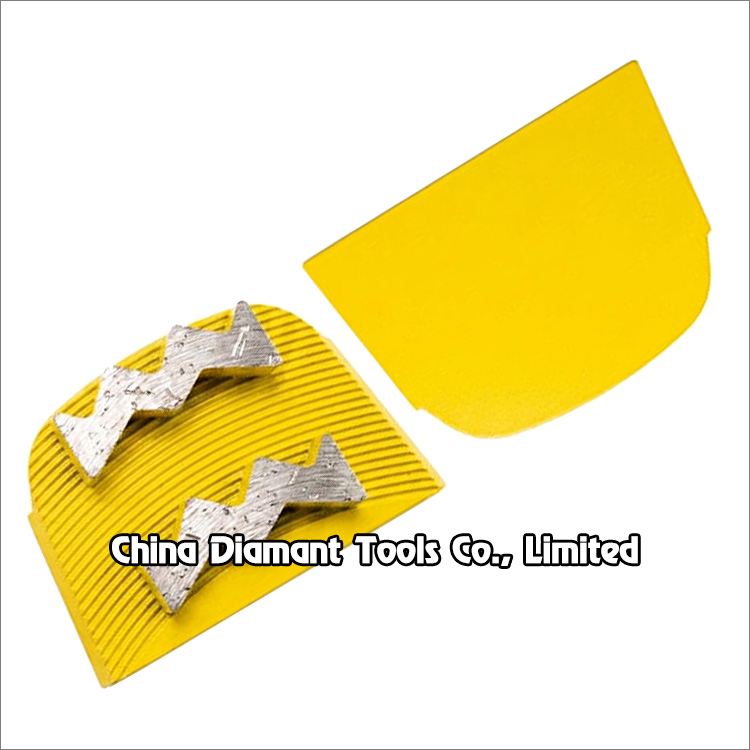

Diamond grinding shoes
concrete grinding pads with metal bond mountain shape segments used
on Lavina floor grinders for rough leveling and grinding of concrete terrazzo stone
floor, such as underground parking lot, factory floor, etc., to
remove the attachment on its surface.
Lavina diamond pads with
quick lock plate provide convenient and economical way for concrete
floor preparation and grinding. The diamond grinding pad is held
into the right position by a combination dovetail-magnet system,
which prevents the grinding pad from slipping during the grinding or
preparation work. Quick change diamond grinding pad requires quick
change plates for attachment. The plates can be reusable and make
the system more economical than traditional welded-button plates.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits(#6,
#16, #20, #25, #30, #40,
#50, #60, #80,
#100, #120, #150,
#170, #200) can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine
grinding(#100-#200).
Welding type of the product in the above
photo: capacity discharge welding.
High frequency welding is available with
regular flat steel base.
For Lavina floor grinders.
Segment size & No.: 42x12mm*1 or 2pcs.
Segment bond: soft,
medium, hard.
Diamond grit: #6 - #200.
Connection: Lavina quick lock plate.
Welding type: capacity discharge welding.
Dry or wet use.
|
Code No. |
Segment
Size/No. |
Grit No. |
|
DGS-LAV-08-1 |
42x12mm*1pc |
#6 - #200 |
|
DGS-LAV-08-2 |
42x12mm*2pcs |
#6 - #200 |
The above specifications & photos are for reference,
special segment size
or bond
may be available as per demand.
