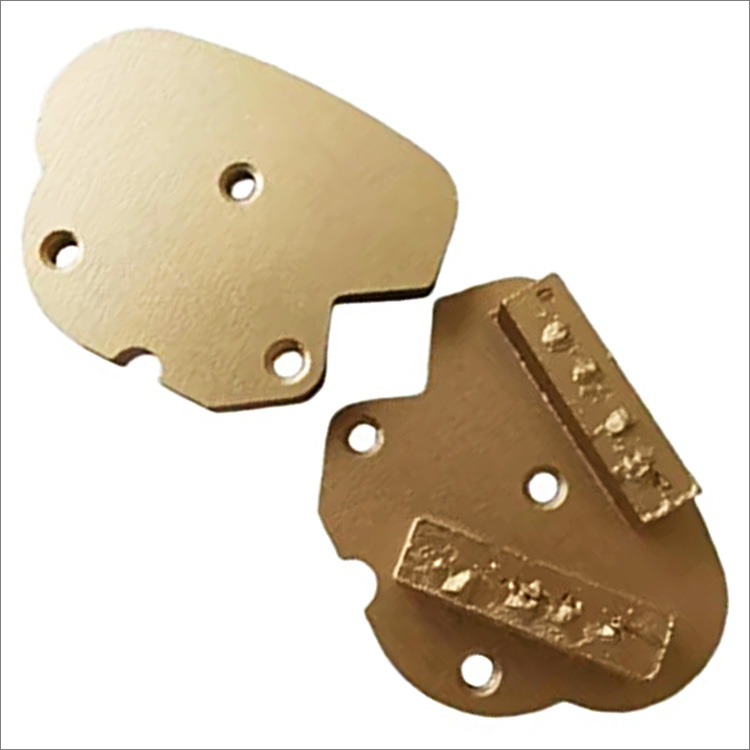

PCD grinding shoe for Airtec floor grinders - double metal bond PCD segments

This PCD grinding shoe with 2pcs metal bond PCD segments is used on Airtec floor grinders for quick removing various coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on concrete or terrazzo floor surface.

The tool features a central PCD chip for aggressive removal performance, supported by two protection bars that help control cutting depth and reduce surface scarring.

Unlike standard directional PCD segments, this chip-style configuration is non-directional and can be used on machines rotating in either direction.

Product Features:
Aggressive coating removal with PCD chip design.
Two metal bars reduce cutting depth and protect the floor surface.
Non-directional design compatible with all rotation types.
Extended tool life through controlled wear and balanced cutting.

For Airtec floor grinders.

PCD Segment: metal bond, 40x10x10mm * 2pcs.

Holes: 3*M6.

Dry or wet use.

The above specifications & photos are for reference, other specification may be available as per demand.
