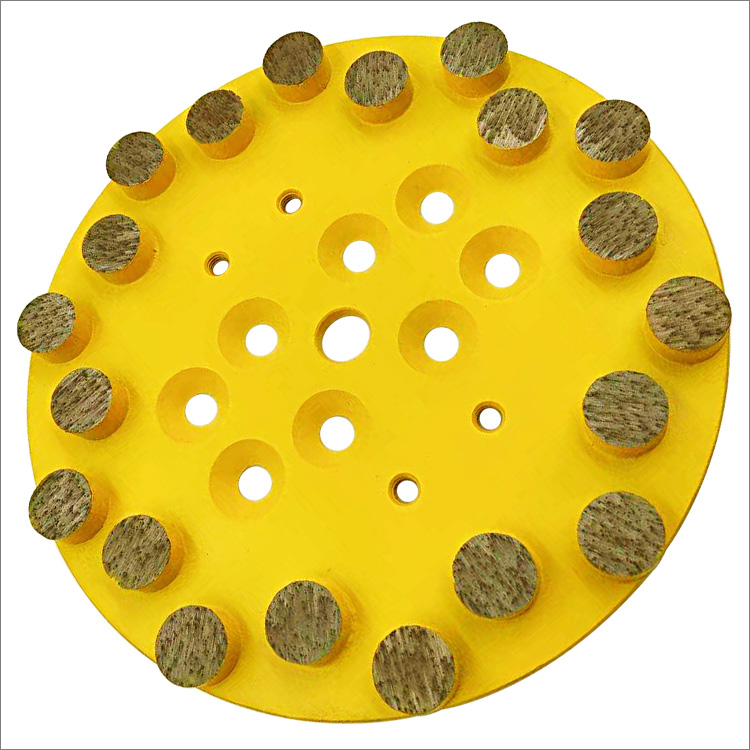

10 inches 250mm diamond discs floor grinding plates for concrete - cylindrical segments

This type diamond discs floor grinding plate with multi-hole and cylindrical diamond segments fit to most of the single head grinder in the market, such as Blastrac/Trelawny grinders. They are designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces with high grinding efficiency and long working life.

They can be used dry, but will give better performance and life used wet.

We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.

For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).

Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.

Segment bond: soft, medium, hard.

For Blastrac floor grinders.

Diameter: 10 inches(250mm).

Segment size and No.: Dia.20xH10mm * 20pcs.

Diamond grit: #6 - #200.

Wet or dry use.

The above specifications & photos are for reference, other specification may be available as per demand.
