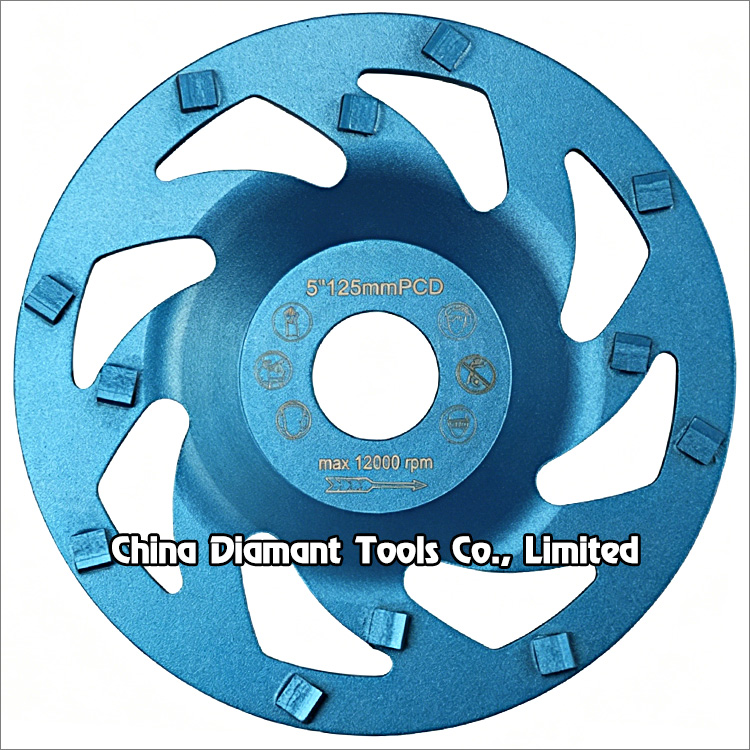

5 6 7 inches PCD grinding cup wheels for concrete floor - double rows



This double rows PCD grinding cup wheel is a perfect tool for sharp removal of heavy epoxy, coatings, mastic, glues or even fast stock removal of concrete, which is designed for fast removing hard and tacky surfaces including: waterproofing membrane, pool deck coating, thick mastic, old and new epoxy coating, paint, VCT/carpet glues, etc., usually the PCD segment scrapes and rips the toughest coating from the surface quickly and effectively with no loading up.



Manufactured from the high quality polycrystalline diamonds. This tools scraping action eliminates gumming up of segments and maximizes production.



Compared to single row PCD cup wheel, double rows PCD cup wheels gives better speed and wider grinding area when it is grinding the concrete surface.



Diameter: 5" -7".

PCD size: 1/4 round.

PCD No.: 12pcs.

Bore size: 22.23mm, M14, 5/8"-11.

Dry or wet use.



May be used on angle grinders or floor grinders.







Code No.

Diameter

PCD No.
GCW-PCD15-125

125mm(5")

8+4
GCW-PCD15-150

150mm(6")

8+4

GCW-PCD15-180

180mm(7")

8+4





The above specifications & photos are for reference, other specification may be available as per customer's demand.
