4 inches 100mm T shank electroplated diamond jig saw blade for
cutting granite marble ceramic tile plastic
The 4-inch 100mm electroplated diamond jig saw blades are designed
for straight, curved, square, circular or S-shape cutting
fiberglass, soft stone, marble, quartz stone, rock, glass, carbon,
plastic, tiles, ceramic tile, brick, carbon, graphite, acrylics,
laminates, kevlar, fibre-cement, polycarbonate and some other
abrasive, brittle or hard materials.
Cutting too thick stone and very large angle cuts are not
recommended.
Wet or dry use, wet working may prolong
the working life.

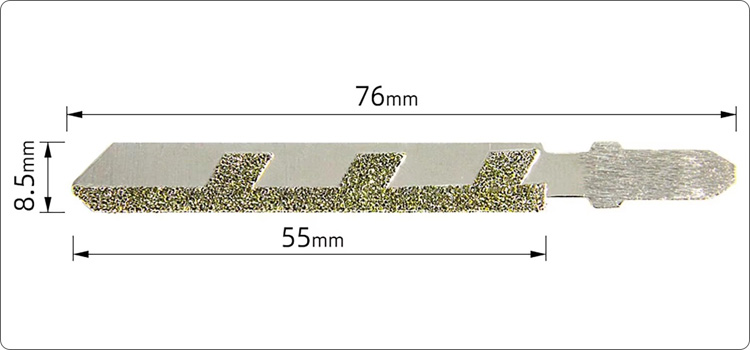

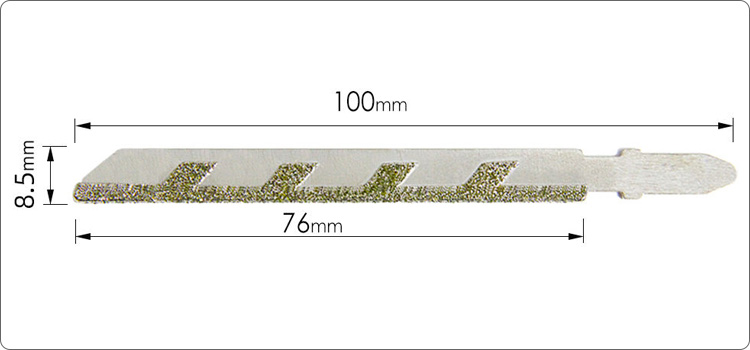

Shank: T shank
Shank length: 76mm, 100mm
Diamond working length: 55mm, 76mm.

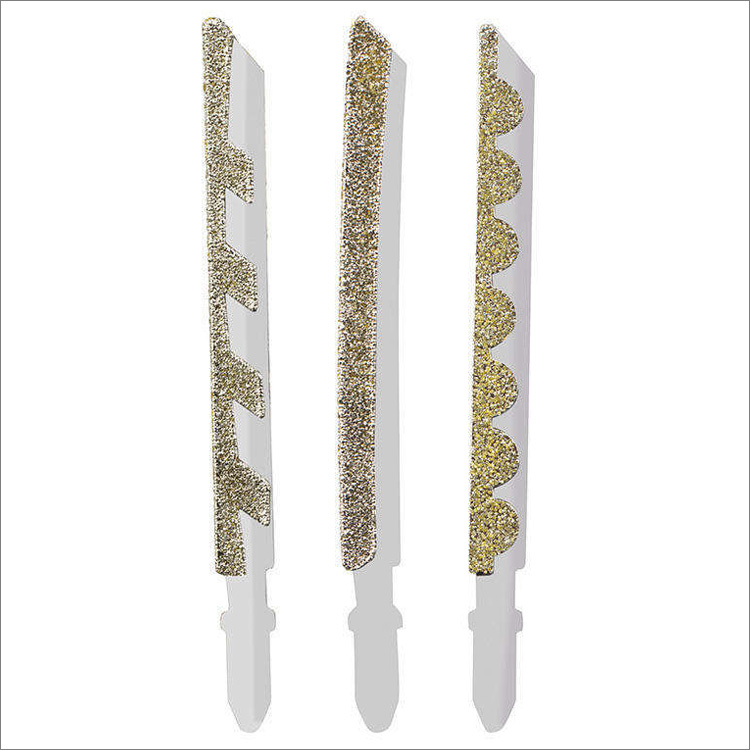

Diamond teeth type: bevel, flat, round.
Shank width: 8.5mm.
Shank thickness: 2mm, 3mm.
Diamond grit: #40, #50, #60, #80, other grit is possible available.
|
Code No. |
Length |
Teeth type |
|
DJSD-EL01-076B |
76mm |
Bevel |
|
DJSD-EL01-076F |
76mm |
Flat |
|
DJSD-EL01-076R |
76mm |
Round |
|
DJSD-EL01-100B |
100mm |
Bevel |
|
DJSD-EL01-100F |
100mm |
Flat |
|
DJSD-EL01-100R |
100mm |
Round |
The above specifications & photos are for reference, other specifications
may be available as per demand.
|
