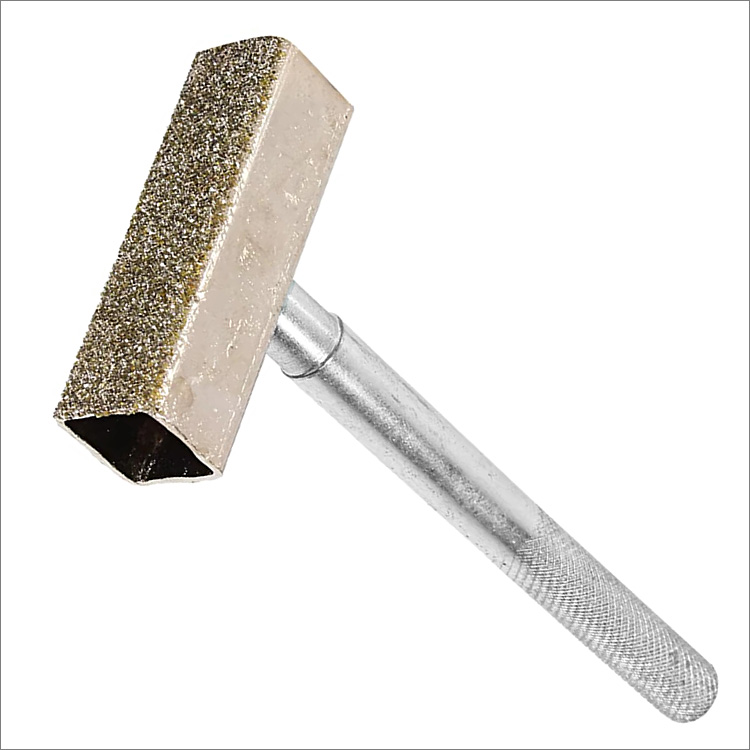

Handheld electroplated diamond grinding wheel stone dresser
correct tool for dressing deburring
Handheld electroplated diamond grinding wheel dresser designed for
wheel reshaping and precision repair to improve equipment
maintenance efficiency, which is a simple way of returning your
grinding wheel to tip-top condition, great for resin bond, chloride,
mechanized and silicone carbide grinding wheels.
Suitable for tool grinder operators and wheel maintenance
technicians, ideal for mold processing and mechanical repair
scenarios, simplifying daily maintenance.

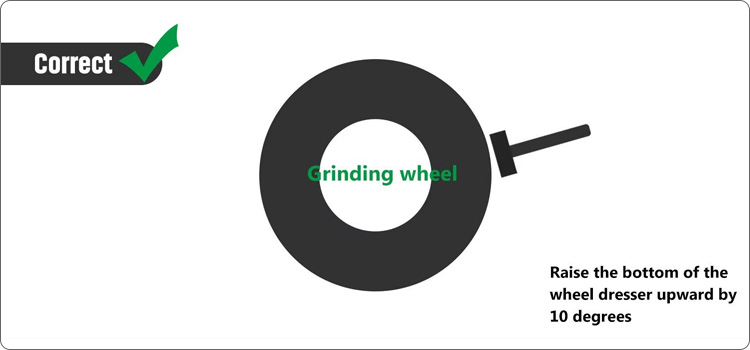

To get the maximum performance from your bench grinder, it's
imperative that the grinding wheel are regularly 'dressed' across
their width to maintain their balance and ensure a 'true' grinding
profile.
Code: DGWD-EL01-100.

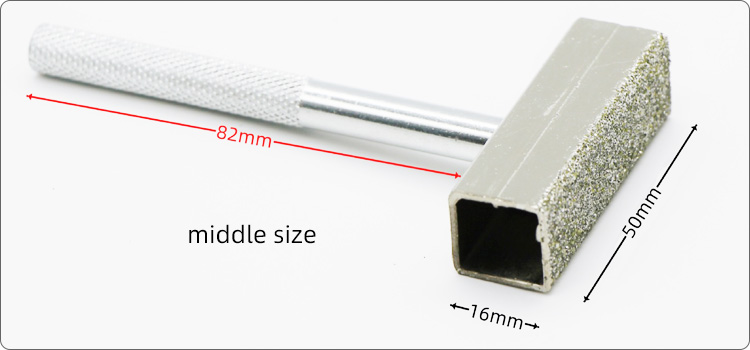

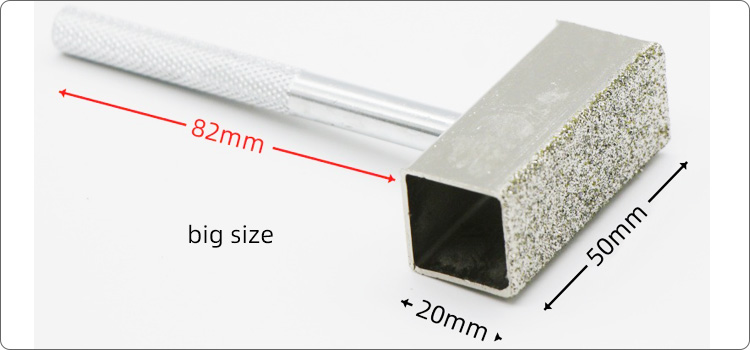

Diamond working length: around 45mm(small), 50mm(middle), 50mm(big)
Diamond working width: around 13mm(small), 16mm(middle), 20mm(big).
Shank diameter: around 8mm.

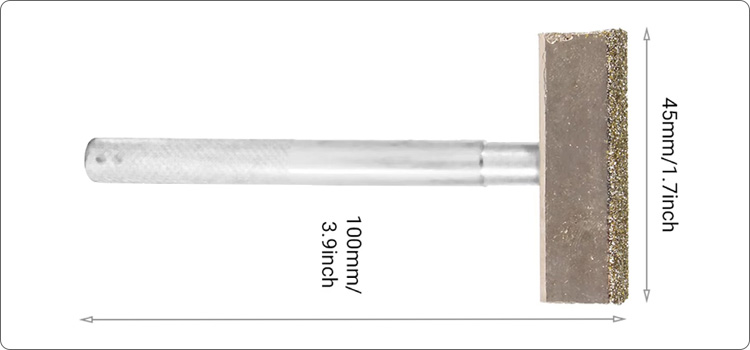

Total length(including shank): around 100mm.
Diamond grit: #40, #60, other grit is possible available.
|
Code No. |
Length |
Diamond Grit |
|
DGWD-EL01-100 |
100mm |
#40,#60 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
|
