100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic

Products Quick View

100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic

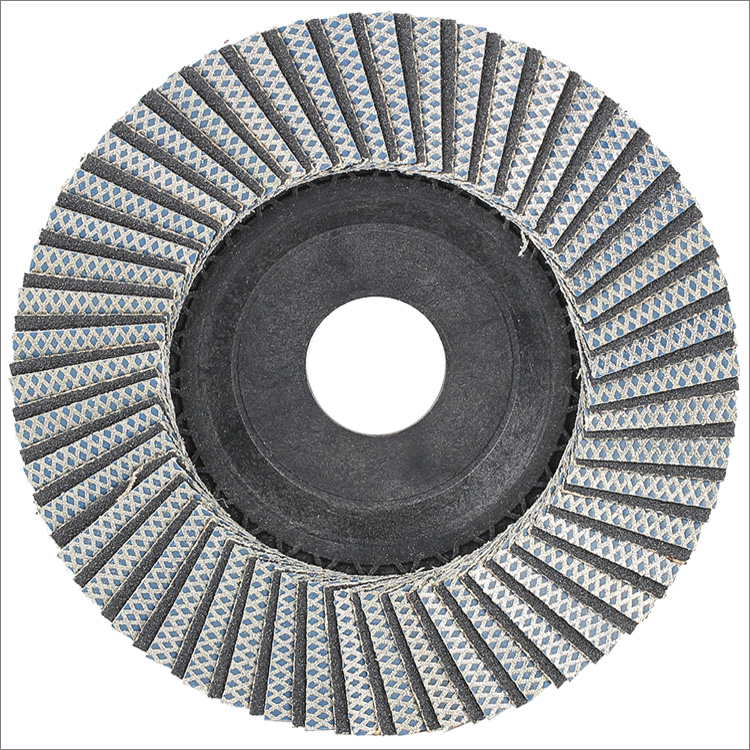

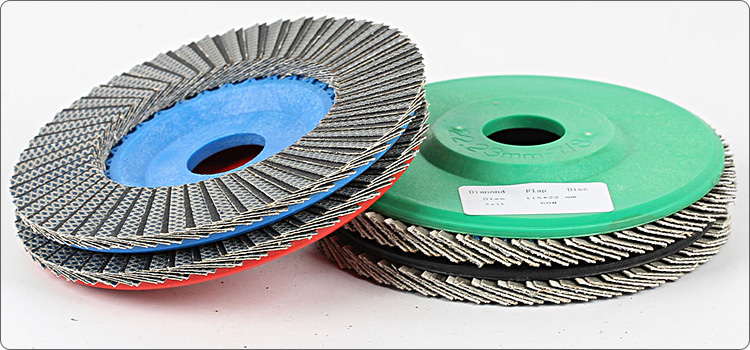

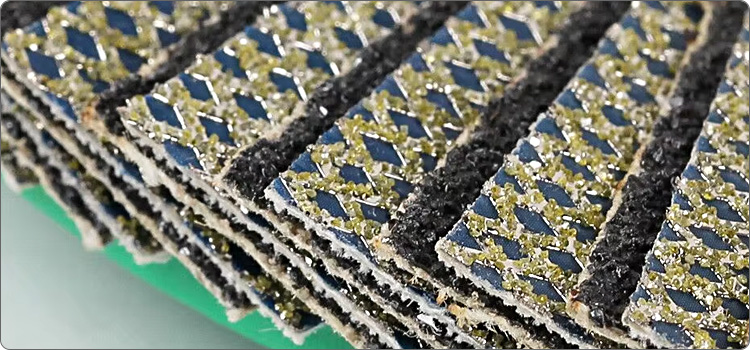

These 4 to 5 inches electroplated diamond flap discs are made of metal bonded diamond flaps combined with silicon carbide flaps, this results in fast material removal with a soft and smooth feel. They are usually used on polishers or angle grinders for sharp chamfering, beveling, edge surface grinding a wide range of materials such as concrete, stone, granite, marble, quartz, ceramic, porcelain tiles, glass, metals, etc.

Wet or dry use, wet working may prolong the working life.

Diamond grit: #60/#80, #120, #200, #400, other diamond grit is possible available.

Working layer width: 20mm.

Adapter: plastic or aluminum.

Bore size: 22.23mm, M14, 5/8"-11.

Code No.	Diameter	Diamond grit
DFD-EL12-100	100mm(4")	#60/#80, #120, #200, #400
DFD-EL12-115	115mm(4.5")	#60/#80, #120, #200, #400
DFD-EL12-125	125mm(5")	#60/#80, #120, #200, #400

The above specifications & photos are for reference, other specifications may be available as per demand.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
